Low Frequency 200 KHz - 30 MHz (75 material)
Part Number | Fig. | Max. Cable Diameter | A | B | C | D | Wt. (g) | Impedance (Ω) | Solid Equivalent | ||||
200 | 500 | 1 | 2 | 5 | |||||||||

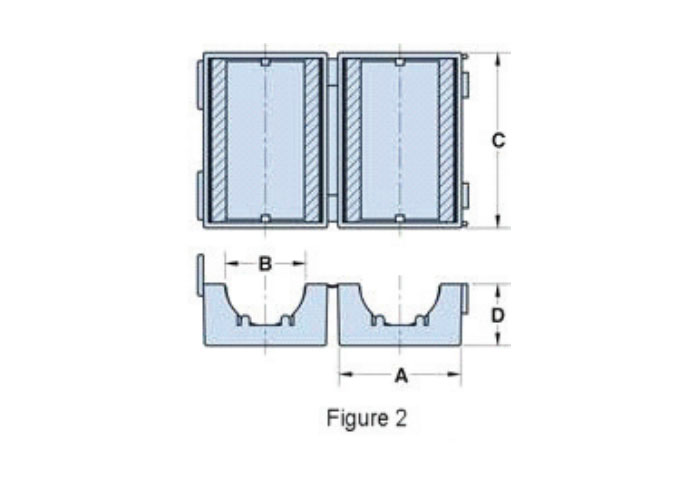

0475181651 | 2 | 4.09 | 13.00 | 5.10 | 23.00 | 6.05 | 6.50 | 14 | 35 | 66 | 108 | 110 | 2675023002 |

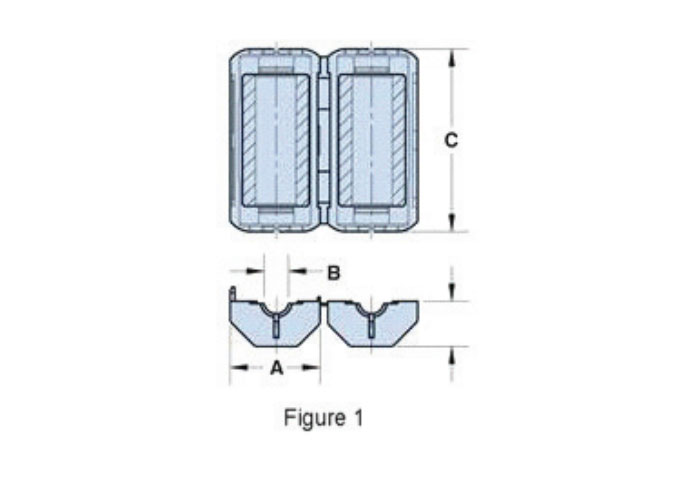

0475164281 | 1 | 6.30 | 20.00 | 6.60 | 39.50 | 10.00 | 26.00 | 19 | 49 | 102 | 172 | 110 | 2675540002 |
0475178281 | 1 | 8.70 | 21.00 | 9.00 | 39.40 | 10.50 | 23.00 | 18 | 46 | 87 | 115 | 74 | 2675665702 |
0475167281 | 1 | 9.85 | 23.00 | 10.15 | 39.50 | 11.70 | 33.00 | 17 | 47 | 92 | 110 | 67 | 2675626402 |
0475164181 | 1 | 12.7 | 30.00 | 13.05 | 39.50 | 15.50 | 61.00 | 20 | 58 | 102 | 70 | 50 | 2675102002 |
0475176451 | 1 | 18.00 | 38.50 | 18.70 | 47.50 | 19.15 | 161.00 | 30 | 92 | 130 | 81 | 66 | - |
Lower & Broadband Frequencies 1-300 MHz (31 material)
Part Number | Fig. | Max.Cable Diameter | A | B | C | D | Wt. (g) | Impedance (Ω) | Solid Equivalent | |||||
1 | 5 | 10 | 25 | 100 | 250 | |||||||||
0431178181 | 1 | 4.10 | 11.80 | 4.30 | 23.20 | 5.60 | 4.20 | 12 | 43 | 60 | 90 | 160 | 183 | _ |
0431173951 | 1 | 4.90 | 12.80 | 5.10 | 25.00 | 5.60 | 6.50 | 14 | 44 | 60 | 100 | 180 | 208 | 2631023002 |
0431164951 | 1 | 4.90 | 17.30 | 5.10 | 36.20 | 8.40 | 17.00 | 25 | 75 | 100 | 169 | 280 | 247 | 2631480002 |
0431164281 | 1 | 6.30 | 20.00 | 6.60 | 39.40 | 9.80 | 26.00 | 28 | 83 | 105 | 180 | 310 | 240 | 2631540002 |
0431178281 | 1 | 8.70 | 21.50 | 9.00 | 39.40 | 10.55 | 23.00 | 18 | 63 | 85 | 130 | 250 | 275 | 2631665702 |
0431167281 | 1 | 9.85 | 23.70 | 10.15 | 39.40 | 11.70 | 33.00 | 18 | 56 | 81 | 144 | 240 | 270 | 2631626402 |
0431164181 | 1 | 12.70 | 31.00 | 13.05 | 39.40 | 15.25 | 61.00 | 25 | 71 | 100 | 156 | 260 | 260 | 2631102002 |
0431176451 | 1 | 18.00 | 38.60 | 18.35 | 47.50 | 19.15 | 161.00 | 47 | 95 | 130 | 225 | 380 | 370 | 2631103002 |
0431173551 | 2 | 18.50 | 29.20 | 18.80 | 42.00 | 14.70 | 78.00 | 16 | 48 | 69 | 125 | 220 | 310 | _ |
0431177081 | 1 | 25.15 | 56.40 | 25.65 | 42.95 | 27.45 | 308.00 | 45 | 90 | 125 | 218 | 375 | 340 | 2631626202 |

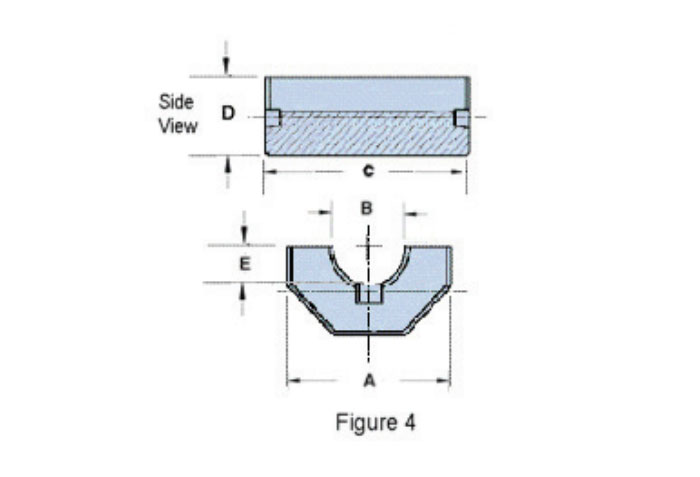

2631181381 | 4 | 35.4 | 62.10±1.00 | 37.20±0.64 | 63.50±1.50 | 30.20±0.31 | 289.00 | 60 | 150 | 190 | 290 | 490 | 530 | _ |
Broadband Frequencies 25-300 MHz (43 & 44 materials)
Part Number | Fig. | Max. Cable Diameter | A | B | C | D | E | Wt. (g) | Impedance (Ω) | Solid Equivalent | |||
10 | 25 | 100 | 250 | ||||||||||
0443178181 | 1 | 4.10 | 11.80 | 4.30 | 23.20 | 5.60 | _ | 4.20 | 40 | 70 | 125 | 152 | _ |
0444173951 | 1 | 4.90 | 12.80 | 5.10 | 25.00 | 5.60 | _ | 6.50 | 54 | 94 | 150 | 187 | 2643023002 |
0444164951 | 1 | 4.90 | 17.30 | 5.10 | 36.20 | 8.40 | _ | 17.00 | 90 | 144 | 245 | 257 | 2643480002 |
0443164251 | 2 | 6.30 | 17.90 | 6.60 | 32.20 | 9.20 | _ | 31.00 | 100 | 163 | 275 | 275 | 2643540002 |
0444164281 | 1 | 6.30 | 20.00 | 6.60 | 39.40 | 9.80 | _ | 26.00 | 95 | 156 | 260 | 270 | 2643540002 |

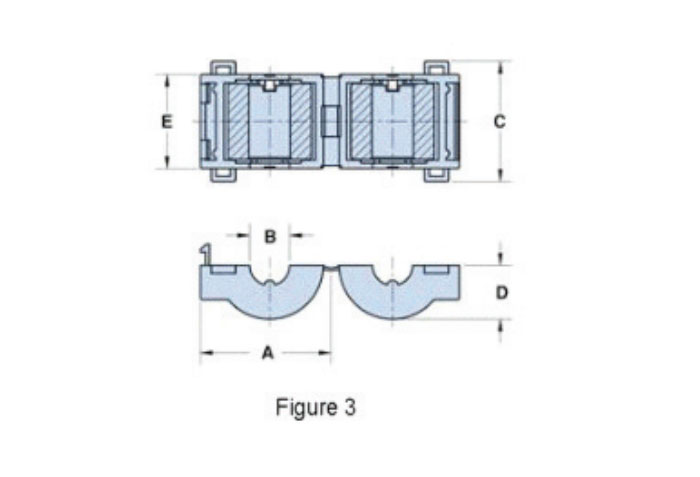

0443625006 | 3 | 7.60 | 24.70 | 7.90 | 22.80 | 10.20 | 17.80 | 13.00 | 27 | 50 | 113 | 188 | 2643625002 |
0443178281 | 1 | 8.70 | 21.50 | 9.00 | 39.40 | 10.55 | _ | 24.00 | 65 | 120 | 230 | 265 | 2643665702 |
0443665806 | 3 | 9.20 | 26.30 | 9.50 | 21.40 | 11.00 | 16.40 | 13.00 | 23 | 41 | 88 | 122 | 2643665802 |
0443167251 | 2 | 9.85 | 22.10 | 10.15 | 32.30 | 11.00 | _ | 42.00 | 79 | 138 | 225 | 285 | 2643626402 |
0444167281 | 1 | 9.85 | 23.70 | 10.15 | 39.40 | 11.70 | _ | 33.00 | 77 | 125 | 210 | 260 | 2643626402 |
0443164151 | 2 | 12.70 | 29.00 | 13.05 | 32.50 | 14.80 | _ | 84.00 | 90 | 156 | 250 | 305 | 2643102002 |
0444164181 | 1 | 12.70 | 31.00 | 13.05 | 39.40 | 15.25 | _ | 61.00 | 76 | 138 | 230 | 280 | 2643102002 |
0443800506 | 3 | 12.80 | 29.70 | 13.20 | 20.60 | 12.70 | 15.60 | 16.00 | 18 | 35 | 75 | 120 | 2643800502 |
0443806406 | 3 | 15.00 | 34.30 | 15.50 | 21.20 | 15.00 | 16.20 | 23.00 | 24 | 43 | 90 | 147 | 2643806402 |
0444176451 | 1 | 18.00 | 38.60 | 18.35 | 47.50 | 19.15 | _ | 161.00 | 100 | 175 | 365 | 365 | 2643103002 |
0444173551 | 2 | 18.50 | 29.20 | 18.80 | 42.00 | 14.70 | _ | 78.00 | 50 | 95 | 195 | 322 | 2643103102 |
0444177081 | 1 | 25.15 | 56.40 | 25.65 | 42.95 | 27.45 | _ | 308.00 | 115 | 194 | 335 | 330 | 2643626202 |
2644181281 | 4 | 33.0 | 61.00±1.30 | 37.20±0.90 | 12.70±.065 | 29.60±0.35 | 16.50MIN 0.650MIN | 63.00 | 35 | 56 | 104 | 170 | 2643803802 |
Higher Frequencies 200-1000 MHz (61 material)
Part Number | Fig. | Max. Cable Diameter | A | B | C | D | Wt. (g) | Impedance (Ω) | Solid Equivalent | |||
100 | 250 | 500 | 1000 | |||||||||
0461178181 | 1 | 4.10 | 11.80 | 4.30 | 23.20 | 5.60 | 4.20 | 115 | 165 | 215 | 300 | _ |
0461164951 | 1 | 4.90 | 17.30 | 5.10 | 38.20 | 8.40 | 17.00 | 215 | 325 | 385 | 332 | 2661480002 |
0461164281 | 1 | 6.30 | 20.00 | 6.60 | 39.40 | 9.80 | 26.00 | 230 | 355 | 425 | 420 | 2661540002 |
0461178281 | 1 | 8.70 | 21.50 | 9.00 | 39.40 | 10.55 | 24.00 | 180 | 285 | 380 | 430 | 2661665702 |
0461167281 | 1 | 9.85 | 23.70 | 10.15 | 39.40 | 11.70 | 33.00 | 175 | 275 | 375 | 400 | 2661626402 |
0461164181 | 1 | 12.70 | 31.00 | 13.05 | 39.40 | 15.25 | 61.00 | 205 | 320 | 435 | 257 | 2661102002 |
0461176451 | 1 | 18.00 | 38.60 | 18.35 | 47.50 | 19.15 | 161.00 | 360 | 480 | 350 | 110 | _ |
