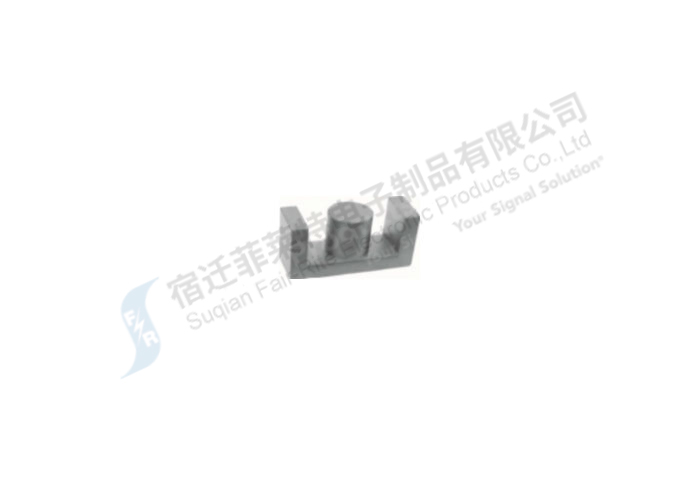

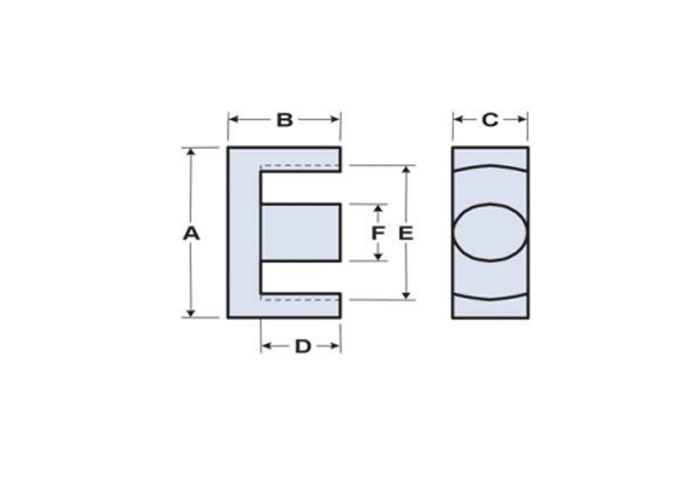

Dimensions
Row | Part Number | Generic Size | A | B | C | D | E | F | Wt. (g) per Set |
(1) | 9578261802 | EER25.5 | 25.50 ± 0.5 | 9.30 ± 0.15 | 7.50 ± 0.25 | 6.40±0.15 | 19.80 min 0.780 min | 7.50 ± 0.25 | 11.20 |
(2) | 9578282802 | EER28/28 | 28.50 ± 0.6 | 14.00 ± 0.2 | 11.40 ± 0.3 | 9.60 ± 0.2 | 21.20 min 0.835 min | 9.90 ± 0.3 | 28.00 |
(3) | 9578283402 | EER28/34 | 28.50 ± 0.6 | 16.90 ± 0.2 | 11.40 ± 0.3 | 12.50 ± 0.2 | 21.20 min 0.835 min | 9.90 ± 0.3 | 32.00 |
(4) | 9578354202 | EER35/42 | 35.00±0.65 | 21.00 ± 0.2 | 11.30 ± 0.3 | 15.00 ± 0.2 | 25.30 min 0.996 min | 11.30±0.3 | 46.00 |
(5) | 9578404602 | EER40/46 | 40.00 ± 0.7 | 22.90 ± 0.3 | 13.30 ± 0.3 | 15.90 ± 0.3 | 29.50 min | 13.30±0.3 | 80.00 |
(6) | 9578424402 | EER42/44 | 42.00 ± 0.7 | 22.00 ± 0.2 | 15.20±0.35 | 15.40 ± 0.2 | 30.50 min | 15.20 ± 0.35 | 96.00 |
(7) | 9578495402 | EER49/54 | 49.00 ± 0.8 | 27.00 ± 0.2 | 17.20±0.35 | 18.70 ± 0.2 | 36.50 min | 17.20 ± 0.35 | 158.00 |
Table Continued ...
Magnetic Core Parameters
Row | Part Number | ∑l/A(cm-1) | Le(cm) | Ae(cm2) | Ve(cm3) | A min(cm2) | AL(nH) |
(1) | 9578261802 9598261802 | 11.10 | 4.80 | 0.434 | 2.083 | 0.425 | 1800 ±25% 1800 ±25% |
(2) | 9578282802 9598282802 | 7.30 | 6.29 | 0.859 | 5.398 | 0.77 | 2800 ±25% 2800 ±25% |
(3) | 9578283402 9598283402 | 8.70 | 7.44 | 0.852 | 6.337 | 0.77 | 2600 ±25% 2710 ±25% |
(4) | 9578354202 9598354202 | 8.20 | 9.11 | 1.11 | 10.14 | 1.00 | 2600 ±25% 2800 ±25% |
(5) | 9578404602 9598404602 | 6.90 | 10.00 | 1.44 | 14.42 | 1.30 | 3400 ±25% 3600 ±25% |
(6) | 9578424402 9598424402 | 5.20 | 9.79 | 1.87 | 18.26 | 1.81 | 4000 ±25% 4100 ±25% |
(7) | 9578495402 9598495402 | 4.80 | 11.80 | 2.45 | 29.02 | 2.32 | 4200 ±25% 5350 ±25% |
