Lower & Broadband Frequencies 1-300 MHz (31 material)

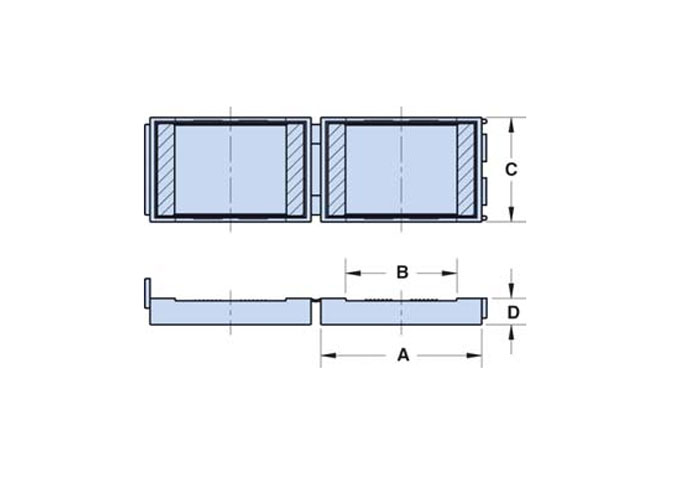

Part Number | Max. Cable Dimensions | A | B | C | D | Wt. (g) | Impedance (Ω) | |||||
1 | 5 | 10 | 25 | 100 | 250 | |||||||
0431163951 | 51.00 x 1.30 2.000x0.050 | 67.80 | 52.10 | 32.30 | 8.10 | 110.00 | 13 | 35 | 54 | 105 | 300 | 425 |
0431164051 | 64.00x1.30 2.520x0.050 | 80.80 | 65.30 | 32.30 | 8.10 | 130.00 | 11 | 34 | 52 | 105 | 310 | 440 |
Broadband Frequencies 25-300 MHz (43 material)
Part Number | Max. Cable Dimensions | A | B | C | D | Wt. (g) | Impedance (Ω) | |||
10 | 25 | 100 | 250 | |||||||
0443166651 | 33.70 x 1.30 1.325 x 0.050 | 49.50 | 34.40 | 32.30 | 8.10 | 80.00 | 60 | 110 | 290 | 435 |
0443163951 | 51.00 x 1.30 2.000 x 0.050 | 67.80 | 52.10 | 32.30 | 8.10 | 110.00 | 56 | 100 | 290 | 400 |
0443164051 | 64.00 x 1.30 2.520 x 0.050 | 80.80 | 65.30 | 32.30 | 8.10 | 130.00 | 48 | 100 | 290 | 420 |
