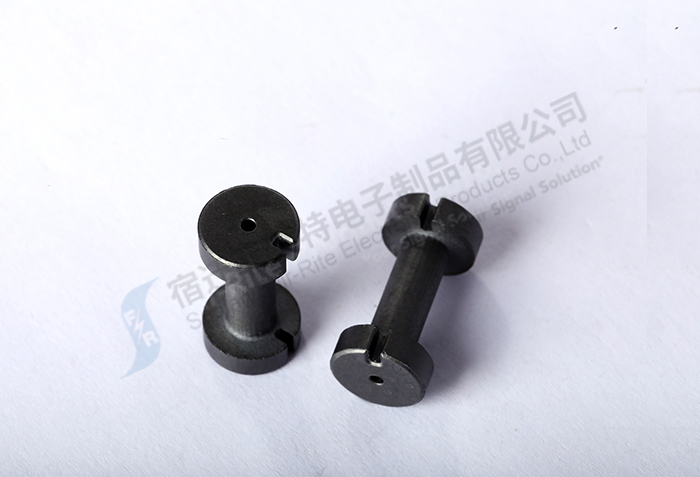

高頻應用類
排# | 零件號 | 圖號 | A | B | D | F | G | H | 重量 (g) |

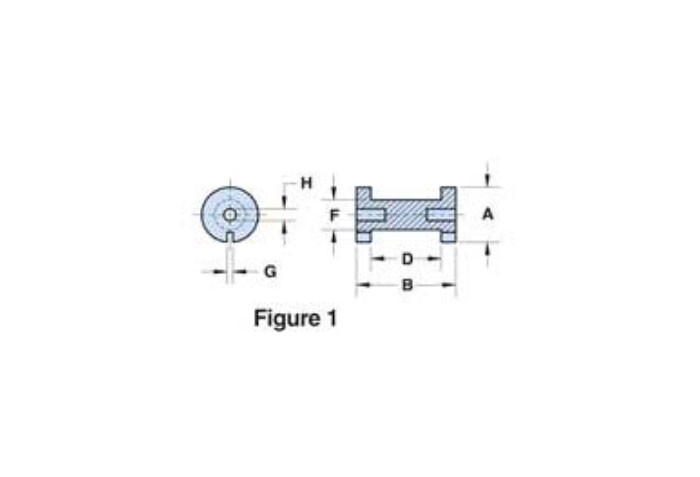

(1) | 9643001165 | 1 | 5.05 -0.15 0.196 | 12.70 ±0.25 0.500 | 10.00 +0.30 0.400 | 2.65 +0.10 0.107 | 0.50 ±0.10 0.020 | 1.00 +0.10 0.042 | 1.30 |
(2) | 9643001015 | 1 | 9.55 -0.15 0.373 | 19.00 ±0.70 0.750 | 12.70 ±0.15 0.500 | 4.65 +0.20 0.187 | 1.00 +0.25 0.045 | 1.03 +0.10 0.043 | 6.70 |

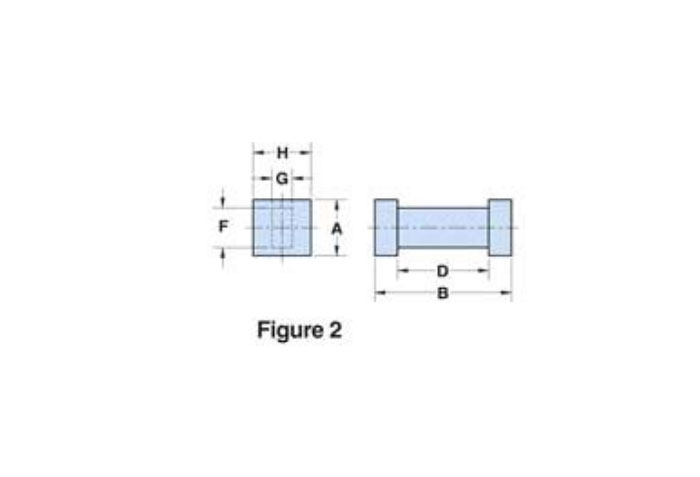

(3) | 9843000104 | 2 | 8.05 ±0.20 0.317 | 19.00 ±0.40 0.750 | 12.70 ±0.25 0.500 | 5.55 +0.25 0.225 | 2.70 +0.25 0.111 | 8.05 ±0.20 0.317 | 3.00 |
接上表
排# | 零件號 | AL(nH) | AL min. @ NI(At) | N/AWG | Aw(cm2) |
(1) | 9643001165 | 17.5 ±10% | - | 30/24 | 0.12 |
(2) | 9643001015 | 38.0 ±10% | - | 75/24 | 0.30 |
(3) | 9843000104 | 38.0 ±10% | - | 50/28 | 0.33 |
功率應用類
排# | 零件號 | 圖號 | A | B | D | F | G | H | 重量 (g) |
(4) | 9677001165 | 1 | 5.05 -0.15 0.196 | 12.70 ±0.25 0.500 | 10.00 +0.30 0.400 | 2.65 +0.10 0.107 | 0.50 ±0.10 0.020 | 1.00 +0.10 0.042 | 1.30 |
(5) | 9677001015 | 1 | 9.55 -0.15 0.373 | 19.00 ±0.70 0.750 | 12.70 ±0.15 0.500 | 4.65 +0.20 0.187 | 1.00 +0.25 0.045 | 1.03 +0.10 0.043 | 6.70 |
(6) | 9877000104 | 2 | 8.05 ±0.20 0.317 | 19.00 ±0.40 0.750 | 12.70 ±0.25 0.500 | 5.55 +0.25 0.225 | 2.70 +0.25 0.111 | 8.05 ±0.20 0.317 | 3.00 |

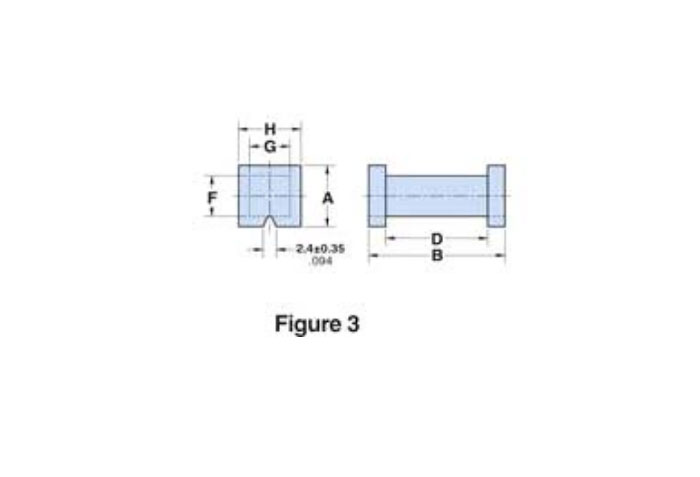

(7) | 9877000204 | 3 | 11.30 ±0.25 0.445 | 25.00 ±0.50 0.984 | 18.95 ±0.45 0.746 | 7.50 ±0.25 0.295 | 7.45 ±0.25 0.293 | 11.40 ±0.40 0.449 | 8.40 |

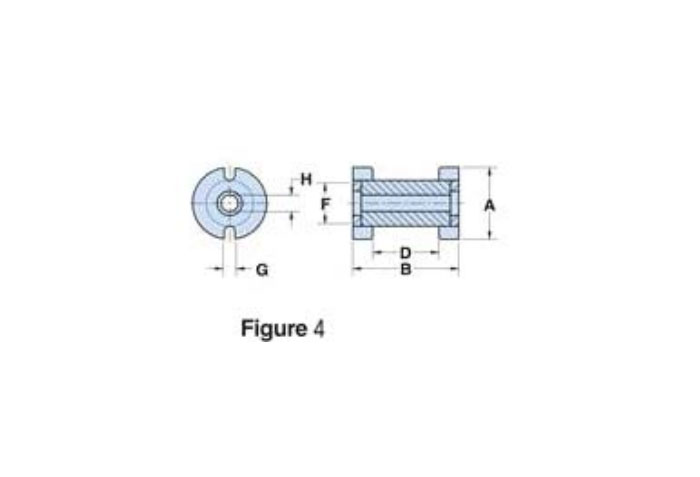

(8) | 9677142009 | 4 | 14.00 ±0.35 0.551 | 20.00 ±0.70 0.788 | 12.50 ±0.30 0.492 | 9.00 ±0.30 0.354 | 2.00 ±0.30 0.079 | 3.20 ±0.10 0.126 | 8.50 |
(9) | 9677182009 | 4 | 18.00 ±0.45 0.709 | 20.00 ±0.70 0.788 | 12.50 ±0.30 0.492 | 11.00 ±0.30 0.433 | 2.50 ±0.30 0.098 | 3.20 ±0.10 0.126 | 13.00 |
(10) | 9677182209 | 4 | 18.00 ±0.45 0.709 | 22.00 ±0.70 0.866 | 14.50 ±0.35 0.570 | 11.00 ±0.30 0.433 | 2.50 ±0.30 0.098 | 3.20 ±0.10 0.126 | 14.00 |
(11) | 9677242009 | 4 | 24.00 ±0.60 0.945 | 20.00 ±0.70 0.788 | 12.50 ±0.30 0.492 | 13.00 ±0.30 0.512 | 3.00 ±0.30 0.118 | 3.20 ±0.10 0.126 | 22.00 |
(12) | 9677242409 | 4 | 24.00 ±0.60 0.945 | 24.00 ±0.70 0.946 | 16.50 ±0.40 0.650 | 13.00 ±0.30 0.512 | 3.00 ±0.30 0.118 | 3.20 ±0.10 0.126 | 24.00 |
(13) | 9677282009 | 4 | 28.00 ±0.70 1.102 | 20.00 ±0.70 0.788 | 12.50 ±0.30 0.492 | 17.00 ±0.40 0.670 | 3.00 ±0.30 0.118 | 4.20 ±0.15 0.165 | 33.00 |
(14) | 9677282509 | 4 | 28.00 ±0.70 1.102 | 25.00 ±0.70 0.985 | 18.00 ±0.45 0.708 | 17.00 ±0.40 0.670 | 3.00 ±0.30 0.118 | 4.20 ±0.15 0.165 | 38.00 |
(15) | 9677352509 | 4 | 35.00 ±0.90 1.381 | 25.00 ±0.70 0.985 | 18.00 ±0.45 0.708 | 21.00 ±0.50 0.825 | 3.00 ±0.30 0.118 | 6.90 ±0.40 0.272 | 56.00 |
(16) | 9677353509 | 4 | 35.00 ±0.90 1.381 | 35.00 ±0.75 1.380 | 28.00 ±0.60 1.100 | 21.00 ±0.50 0.825 | 3.00 ±0.30 0.118 | 6.90 ±0.40 0.272 | 71.00 |
(17) | 9677453509 | 4 | 45.00 ±1.00 1.771 | 35.00 ±0.75 1.380 | 26.00 ±0.60 1.024 | 27.00 ±0.50 1.063 | 3.60 ±0.30 0.142 | 9.00 ±0.30 0.354 | 127.00 |
接上表
排# | 零件號 | AL(nH) | AL min. @ NI(At) | N/AWG | Aw(cm2) |
(4) | 9677001165 | 18 ±10% | 15 - 90 | 30/24 | 0.12 |
(5) | 9677001015 | 39 ±10% | 33 - 125 | 75/24 | 0.30 |
(6) | 9877000104 | 39 ±10% | 33 - 125 | 36/24 | 0.33 |
(7) | 9877000204 | 49 ±10% | 42 - 360 | 45/24 | 0.37 |
(8) | 9677142009 | 55 ±10% | 47 - 325 | 81/28 | 0.31 |
(9) | 9677182009 | 66 ±10% | 56 - 400 | 50/20 | 0.44 |
(10) | 9677182209 | 65 ±10% | 55 - 410 | 95/22 | 0.51 |
(11) | 9677242009 | 88 ±10% | 75 - 430 | 50/18 | 0.69 |
(12) | 9677242409 | 84 ±10% | 72 - 450 | 67/18 | 0.91 |
(13) | 9677282009 | 100 ±10% | 86 - 470 | 40/18 | 0.69 |
(14) | 9677282509 | 95 ±10% | 81 - 520 | 55/18 | 0.99 |
(15) | 9677352509 | 124 ±10% | 106 - 580 | 55/16 | 1.27 |
(16) | 9677353509 | 110 ±10% | 94 - 700 | 70/16 | 1.97 |
(17) | 9677453509 | 142 ±10% | 121 - 750 | 100/16 | 2.34 |
